Celebrating 50 Years of the 007

High-Efficiency Heating, Cooling, & Plumbing Solutions
Easy-to-Use Design & Selection Software
Industry-Leading Training & Technical Support

In business since 1920, Taco is a global, industry-leading company that strives to be the first choice for dependable, high-efficiency heating, cooling, behind-the-wall plumbing, and fluid control solutions that help our customers save money, energy, and resources while maximizing their comfort and productivity. Stop by our booth – booth #2901 – to learn more.

PRODUCTS

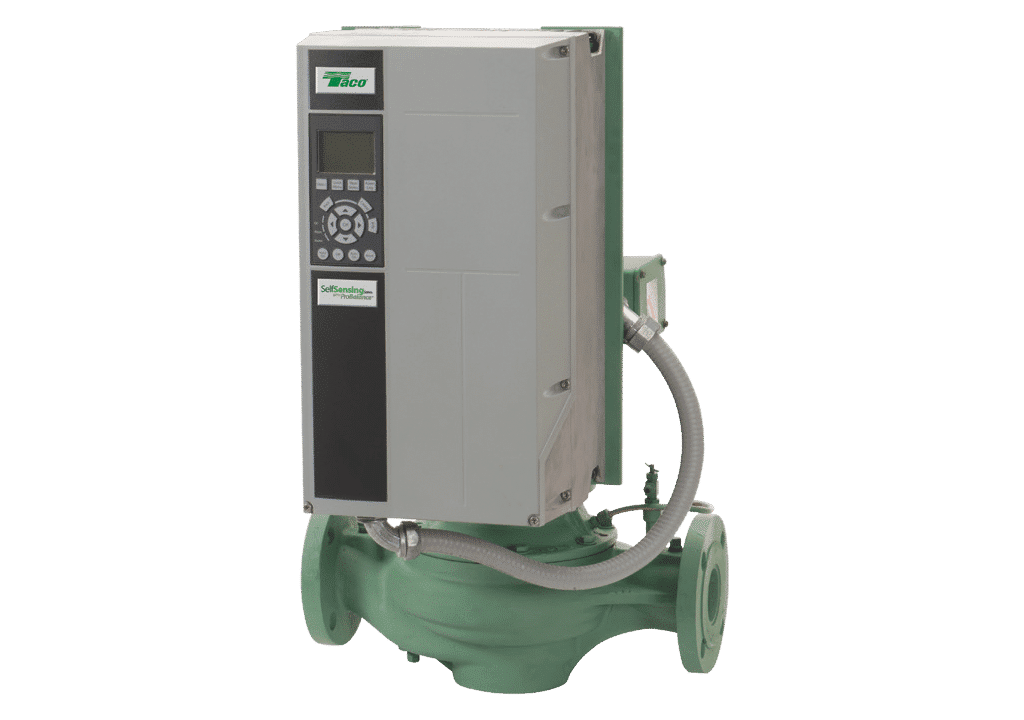

SKV 6009D SelfSensing Vertical In-Line Pump

Taco vertical in-line pumps meet or beat leading competitive pump efficiencies over 84% of the time
SelfSensing ProBalance® technology for fast, accurate DIY system balancing
Award-winning Taco Tags for vital product information, right on your phone

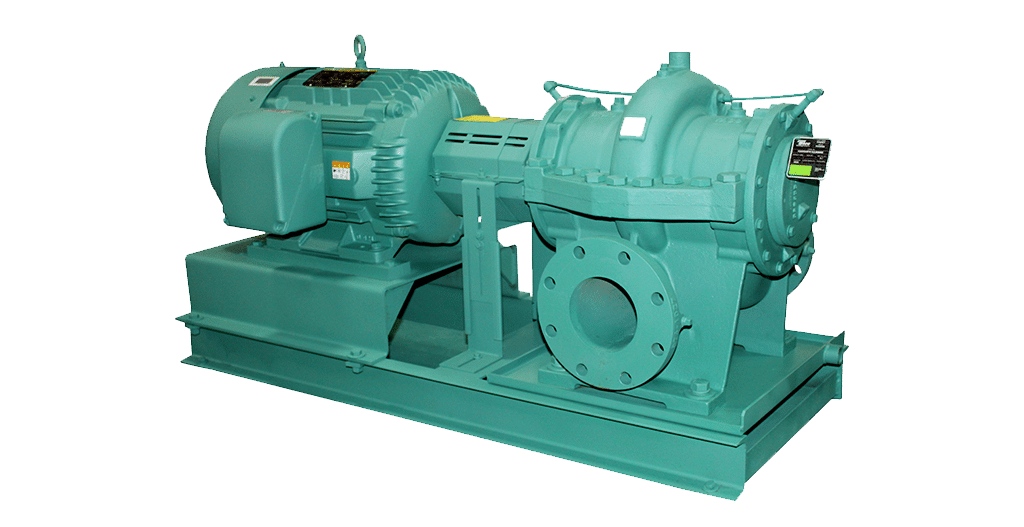

HS Series Horizontal Split Case Pumps

Shorter Lead time
The bearing and seal can be removed without removing the top cover
Improved efficiency and BEP
HS Pumps are a direct bolt-in to the existing

1911ecm | 1915ecm High-Efficiency Pumps

1911ecm: 425 watts, 50 feet max head, 105 GPM max flow
1915ecm: 650 watts, 65 feet max head, 120 GPM max flow
Designed for heating or NSF commercial hot applications
Easy-to-program pump interface
Constant speed, constant pressure, or proportional pressure modes
BMS 0-10V; 2-pump operation

00e VR Series ECM High-Efficiency Circulators

1/3 HP to 2HP ECM Circulator, 62 Feet Max Head, 320 GPM Max Flow for commercial & large residential jobs
Modbus, BACnet, 0-10Vdc & Pulse Width Modulation (PWM) are all standard
High-efficiency ECM technology uses up to 85% less electricity.
Constant speed, constant pressure, proportional pressure, and TacoAdapt™; self-adjusting proportional pressure
Stainless steel models NSF 61 & 372 Commercial Hot certified

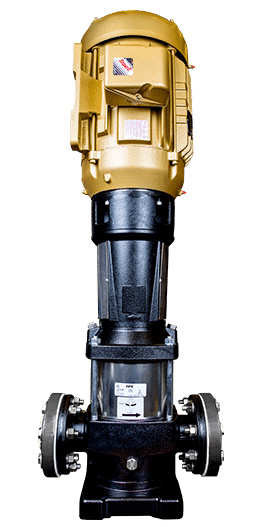

Vertical Multi-Stage Pump

Vertical Multi-Stage Pumps are available from 5 to 500 GPM, with all 316 stainless steel hydraulics for superior durability, efficiency, and performance.
A small footprint, premium motor, and rugged components ensure long operating life, providing a water-pumping solution in nearly any demanding application

CAF Series Flow-Through Expansion Tank

Precise flow channeling through Patent Pending head design
Discourages Legionella and other bacterial growth
Minimizes pressure loss, discourages short-cycling
Available with sight glass for failure detection
NSF/ANSI 61-G certified
Retrofittable to meet ASHRAE Standard 188 on existing designs

4900 Series® Air Separator w/Magnetic Dirt Separator

Easy maintenance through Patent Pending on/off magnet
High-power neodymium magnets
2” full port blow down on 3” and larger models
Reduced field install and maintenance times
High-efficiency micro-bubble and dirt separation through proven PALL Ring technology

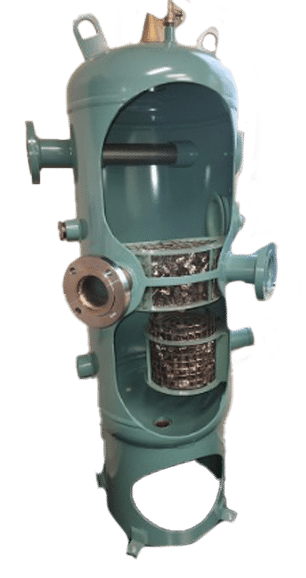

Custom Fabrication Tank

In-house capabilities to design, fabricate, and test your specific job requirements
Customized variations of all standard designs
High system efficiencies with maximum energy and cost savings
All fabricated products are manufactured to ASME Section VIII, Div 1 requirements

PF Series Plate & Frame Heat Exchanger

Designed, constructed, and tested to ASME Section VIII, Div. 1 req.; U stamp provided
Built to last – 0.5mm thick plates for standard designs; 0.6mm plates for high-pressure design requirements
Corrosion-resistant 304/316 stainless steel & titanium heat transfer plates are available
Working pressure 150-psi & 300-psi; higher pressures on request
High-temperature gaskets available – NBR-HT rated to 284°F; EPDM-HT rated to 320 °F

007e® ECM High-Efficiency Circulator

BIO BARRIER^® protects the circulator from system contaminants (Cast Iron only)
SureStart^®, a Taco-exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
Convenience. The 007e makes your job easier.
• Dual electrical knock-outs
• 6″ stranded wire leads for easy wiring
• Double Insulated. No ground is necessary.
• Integral Flow Check (IFC^®) included
Cast Iron Casing

0018e® ECM High-Efficiency Circulator

44 watts, 18 feet max head, 16 GPM max flow
Designed for heating or hot water recirculation
Cast iron or stainless steel volute (NSF/ANSI 61 & 372 certified)
0018e Mobile app provides more operating choices, real-time control, display, and diagnostics
Easy-to-use dial matches system requirements:
- –Bluetooth – 0018e Mobile app
- –Proportional Pressure
- –Constant pressure
- –Min/Max fixed speed
- –BIO Barrier®, SureStart ® & TacoAdapt™

0015e3® ECM High-Efficiency Circulator

BIO Barrier^® protects the pump from system contaminants.(Cast Iron only)
SureStart^®, a Taco-exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
High-efficiency ECM motor uses up to 85% less electricity
3 Easy Settings:
• LOW (5 ft. head)
• MEDIUM (10 ft. head)
• HIGH (18 ft. head)
Dual electrical knockouts
6″ stranded wire leads for no-fumble wiring
Double Insulated. No ground is necessary.
Integral Flow Check (IFC^®) included
Whisper Quiet Operation

0026e® ECM High-Efficiency Circulator

120 watts, 26 feet max head, 44 GPM max flow
Designed for heating or hot water recirculation
Cast iron or stainless steel volute (NSF/ANSI 61 & 372 certified)
5 easy dial settings to match system requirements:
- TacoAdapt™ self-adjusting proportional pressure
- Constant pressure – 8 ft. Head, 16 ft. head
- Max fixed speed – 26 ft. head
- Min/Max fixed speed
- 0-10V DC & PWM
BIO Barrier® & SureStart®

0034ePlus® ECM High-Efficiency Circulator

180 watts, 34 feet max head, 50 GPM max flow
Designed for heating or hot water recirculation
Cast iron or stainless steel volute (NSF/ANSI 61 & 372 certified)
Digital display with real-time feedback:
- Watts, GPM, Feet of Head, RPM
Push button control with 5 operating modes:
- TacoAdapt™ self-adjusting proportional pressure
- Constant pressure – 5 settings
- Proportional pressure – 5 settings
- Min/Max fixed speed
- 0-10V & PWM
BIO Barrier® & SureStart®

NextGen Zone Controls

Diagnostic lights for all outputs; zones, boiler’s & AUX’s
Up to 5 programmable outputs to better control system
Priority protection, post-surge, pump exercise timers
Simple wiring and grounding options
DHW recirculation – SmartPlus logic
Bluetooth and Modbus communications
Over-the-air updates (OTA); future proof
Added features are unlocked w/Taco Control mobile app

TacoTherm Fresh Nano2

Preconfigured gas boiler replacement unit with a compact design
On-demand, hygienic, decentralized DHW heating
Reduction of stored drinking water volume to a minimum
Demand-based energy billing

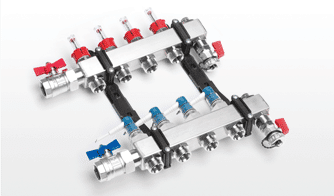

TacoSys Pro

Next generation of Underfloor Heating System manifolds
TopMeter Plus balancing valve with new, integrated memory function
Innovative TacoDrive combines heating circuit valve and thermostatic actuator to create a single, highly compact actuator
All actuators are pre-assembled prior to delivery – reduces installation time and speeds up commissioning
